Chinese Steel

H Beam & I Beam

As a leading  Chinese structural steel supplier. We can produce 2000 tons per month and have a wide range of diffrent sizes.

Factory Price

Top Quality

Custom Size

More Details

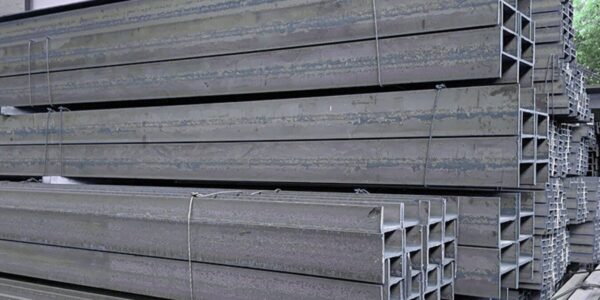

Hbeam 2

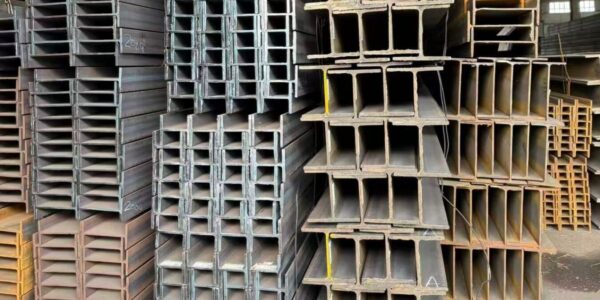

Hbeam 1

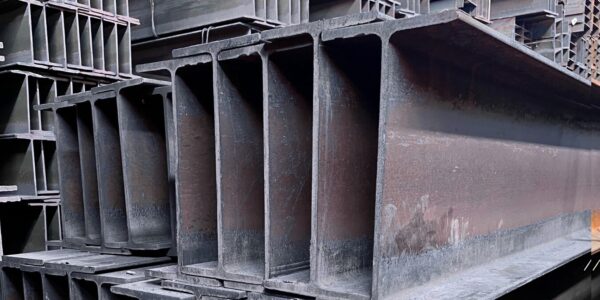

Hbeam 3

Download Steel Beam I & H Universal Standard Catalogue!

Description

Universal standard H-beams and I-beams are widely used structural steel sections known for their high strength and load-bearing capacity. H-beams have wider flanges and a thicker web, making them ideal for heavy construction, while I-beams are lighter and commonly used in building frameworks. These beams are manufactured using the hot rolling process, where steel billets are heated at high temperatures and passed through rollers to achieve precise shapes and dimensions. This process ensures uniform mechanical properties, improved durability, and excellent structural performance.

Technical specifications of H-beams and I-beams typically include parameters such as height, flange width, web thickness, flange thickness, and weight per meter. They are produced according to international standards like ASTM, EN, and JIS, ensuring quality and consistency. Common material grades include structural carbon steel with good weldability and toughness. These beams offer high resistance to bending and shear forces, making them suitable for bridges, industrial buildings, and infrastructure projects.

ProductionStructural Steel
GradeQ215,Q235B,Q345B,Q355B,
CertificationGB, ISO, JIS, IS0, RoHS, Mtc.
StandardsUniversale & International
Trade termEXW, FOB &CIF
TransportationBundled with strong steel strips or steel wires ,special packing please discuss with us
Pyment Term30%TT in Advanced, 70% support LC upon bill of loading.
Origin China

H Beam

Size (mm)Weight ( kg)
100*50*5*79.54
100*100*6*817.2
125*60*6*813.3
125*125*6.5*923.8
150*75*5*714.3
148*100*6*921.4
150*150*7*1031.9
175*90*5*818.2
175*175*7*1140.3
194*150*6*931.2
198*99*4.5*718.5
200*100*5.5*821.7
200*200*8*1250.5
200*204*12*1256.7
244*175*7*1144.1
248*124*5*825.8
250*125*6*929.7
250*250*9*1472.4
250*255*14*1482.2
294*200*8*1257.3
294*302*12*1285
298*149*5.5*832.6
300*150*6.5*937.3
300*300*10*1594.5
300*305*15*15106
340*250*9*1479.7
344*348*10*16115
346*174*6*941.8
350*175*7*1150
350*350*12*19137
388*402*15*15141
390*300*10*16107
394*398*11*18147
396*199*7*1156.7
400*200*8*1366
400*400*13*21172
400*408*21*21197
414*405*18*28233
428*407*20*35284
440*300*11*18124
446*199*8*1266.7
450*200*9*1476.5
458*417*30*50415
482*300*11*15115
488*300*11*18129
496*199*9*1479.5
498*432*45*70605
500*200*10*1689.6
506*201*11*19103
582*300*12*17137
588*300*12*20151
594*302*14*23175
596*199*10*1595.1
600*200*11*17106
606*201*12*20120
692*300*13*20166
700*300*13*24185
800*300*14*22191
800*300*14*26210
890*299*15*23213
900*300*16*28243
912*302*18*34286

I Beam

SizeSpacification (mm)Weight (kg/m)
12#120*74*5.013.987
14#140*80*5.516.89
16#160*88*6.020.513
18#180*94*6.524.143
20#A200*100*7.027.929
20#B200*102*9.031.069
22#A220*110*7.533.07
22#B220*112*9.536.524
25#A250*16*8.038.105
25#B250*118*10.042.03
28#A280*122*8.543.492
28#B280*124*10.547.888
30#A300*126*9.048.084
32#A320*130*9.552.717
32#B320*132*11.557.741
36#A360*136*10.060.037
36#B360*138*12.065.689
40#A400*142*10.567.598
40#B440*144*12.573.878
45#A450*150*11.580.42
45#B450*152*13.587.485
56#A560*166*12.5106.316
56#B560*168*14.5115.108
63#A630*176*13121.407
63#B630*178*15131.298
